How Thermal Imaging Helped Detect a Hidden Shower Leak Caused by Waterproof Membrane Failure in Sydney

August 2, 2026 7:42 am Published by

Hidden Bathroom Leaks Can Cause Thousands of Dollars in Damage

A leaking shower isn’t always caused by a burst pipe. In many Sydney homes, water escapes through a failed waterproof membrane, allowing moisture to spread beneath tiles and into surrounding floorboards before any visible signs appear.

Recently, our licensed leak detection specialists were called to inspect a bathroom where the homeowner had noticed water damage outside the shower area. Using a combination of flood testing, spray testing, and thermal imaging, we accurately identified the source of the problem without unnecessary demolition. Evolution Plumbing uses advanced non-invasive leak detection methods, including thermal imaging, acoustic technology, moisture testing, and pressure testing to locate hidden leaks quickly and accurately across Sydney.

The Problem

  • Water damage outside the bathroom
  • Damp flooring near the shower
  • Moisture spreading beneath timber floorboards
  • No visible leaking pipes

Since the source wasn’t obvious, our team performed a complete leak investigation.

Our Leak Detection Process

  1. Shower Spray Test:We first carried out a controlled spray test on the shower enclosure to determine whether water was escaping during normal shower use. The testing confirmed that water was leaving the shower area.

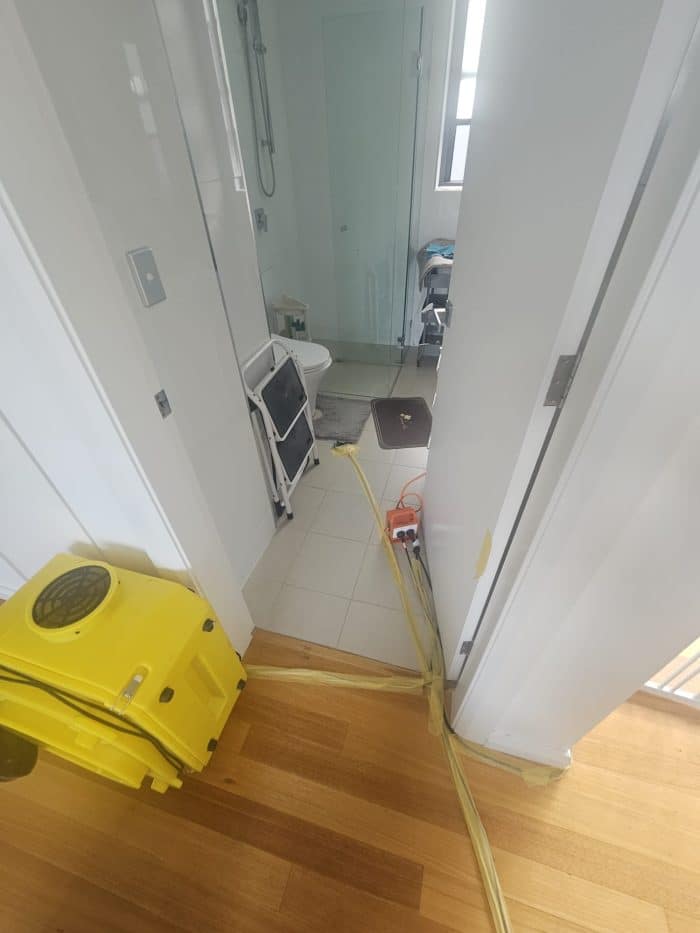

Shower Spray Test

  1. Flood Test: Next, we completed a flood test to evaluate the waterproof integrity of the shower base. This allowed us to determine whether the waterproofing system beneath the tiles had failed.

  2. Thermal Imaging Inspection: Using a professional FLIR thermal imaging camera, we scanned the bathroom walls, floor, and surrounding areas. The thermal images clearly showed:

  • Hidden moisture beneath the floor tiles
  • Water migration beyond the wet area
  • Moisture extending beneath the timber flooring
  • The leak path travelling outside the shower enclosure

This confirmed that the waterproof membrane had failed, allowing water to escape beneath the tiled surface.

Inspection Findings

Following our inspection, we confirmed:

      • Shower spray test completed
      • Flood test completed
      • Thermal imaging scan completed
      • Hidden moisture detected beneath the tiles
      • Water travelling beneath adjacent floorboards
      • Waterproof membrane failure identified

The leak was not caused by exposed plumbing but by water penetrating through a compromised waterproof membrane beneath the shower. Waterproof membrane failures are a common cause of concealed bathroom leaks and can lead to structural damage if not repaired promptly.

Why Thermal Imaging Matters

Traditional leak detection often involves removing tiles or opening walls to locate the source.

Thermal imaging allows our technicians to:

  • Locate hidden moisture quickly
  • Reduce unnecessary demolition
  • Identify the direction of water travel
  • Support accurate repair recommendations
  • Save homeowners time and repair costs

Because thermal imaging is non-invasive, we can investigate hidden water damage while minimising disruption to your property.

Signs Your Bathroom May Have a Hidden Leak

If you notice any of these warning signs, it’s time to arrange a professional inspection:

  • Damp or swollen flooring
  • Water stains outside the bathroom
  • Loose or cracked tiles
  • Damaged grout or silicone
  • Mould or mildew
  • Musty odours
  • Peeling paint
  • Water damage around skirting boards
  • Rising water bills

Ignoring these symptoms can lead to costly structural repairs.

How Evolution Plumbing Can Help

At Evolution Plumbing, we specialise in non-invasive leak detection throughout Sydney.

Our experienced team uses:

  • Thermal imaging cameras
  • Moisture meters
  • Pressure testing
  • Flood testing
  • Shower spray testing
  • CCTV drain inspections
  • Acoustic leak detection

Every inspection includes clear findings and practical recommendations, helping homeowners, builders, strata managers, and insurance companies understand the true cause of the leak.

Need Professional Leak Detection in Sydney?

If you’ve noticed water damage, damp flooring, or suspect a hidden bathroom leak, don’t wait for the problem to get worse. Evolution Plumbing provides professional Leak Detection Services across Sydney, using advanced diagnostic equipment to accurately locate leaks and recommend the right repair solution.
